Y Connectors are used to attach branch lines to service more than one machine at at a time. This design provides increased lateral air flow and efficiency over other types of fittings. Hose clamps are required for proper connection.

The Perfect fitting for adding more tools to
your dust collection system

The 4" three port junction fitting gives you the ability to attach up to three different machines or tools to one convenient fitting. Works great with tablesaws, jointers, planers, bandsaws and more! The fitting is designed to be used with 4" hose and requires the use of hose clamps (not included see page 26 for hose clamps and accessories). The three port junction fitting has a 4" O.D. and a 3-7/8" I.D. on all four openings.

The 4 to 2½” -Y- connector is used simply to branch off your dust collection line just like a standard “Y” connector, only this connector reduces your branch off down to 2½” . Hose
clamps are required for proper connection.

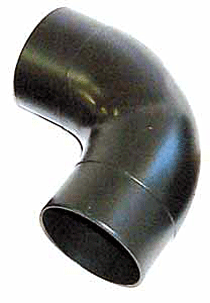

Elbow Connectors eliminates binding or kinking in the hose when you bend your hose at a 90° angle. Place the Elbow connector in the corners of your dust collection line to prevent kinks. Hose clamps are required for proper connection.

Elbow Connectors eliminates binding or kinking in the hose when you bend your hose at a 45° angle. Place the Elbow connector in the corners of your dust collection line to prevent kinks. Hose clamps are required for proper connection.

T- Connectors provide the option of adding branches to system to service each machine in a shop. T’s are very helpful when space or design constraints prohibit the use of Y’s and other fitting types. Hose clamps are required for proper connection.

Use this 2-1/2" Union Fitting to connect two hard fitting together. Can be used with Y's, T's, Elbows and Splices. Sample Use:

Splice fittings are used simply to connect two sections of dust collection hose together. You can use them on long runs of hose line or short runs of hose line. Hose clamps are required for proper connection. The 2-1/2” fitting will accept a 2-1/4” Shop-Vac® hose. This will allow you to join two Shop-Vac® hoses end to end with no hose clamps.
