Dust Collectors

Shop Fox 1-1/2 Hp Dust Collector

Shop Fox Dust Collector



This powerful dust collector from Shop Fox® features an extra heavy-duty 12" steel impeller and a 1-1/2 HP motor that runs on 110V.

  • Motor size: 1-1/2 HP, 110V, single-phase, 3,450 RPM
  • Motor amp draw: 110V - 16A
  • Portable base size: 21-1/2" x 33-1/2"
  • Bag volume: 5.4 cubic feet
  • Height (with bags inflated): 78"
  • Bag size (Dia. x depth): 19" x 33" (2)
  • Powder-coated paint
  • Air suction capacity: Approx. 1,280 CFM
  • Impeller: Balanced steel, radial fin 12"
  • 6" inlet with a removable "Y" fitting with two 4" openings
  • Static pressure: 10.1"
  • Standard bag filtration: 30 Micron
  • Approx. shipping weight: 120 lbs.
No. Description
Price
Quantity
331
Shop Fox 1-1/2 Hp Dust Collector
$299.99
Phone Order Only
(888) 512-9069
Requires extra shipping fees.
336
D3116 2.5 Micron Replacement Dust Collector Bag
universal oversize bag for upper and lower bag replacement.
$59.99

product divider

Shop Fox 1- Hp Dust Collector

Shop Fox 1 Hp Dust Collector



Designed for portability, the model W1727 1 HP Dust Collector can be moved from one machine to another when needed, instead of having to build an entire fixed dust collection system and running ducts to each machine. Some of the machines that this unit works well with are the oscillating drill presses, 13" planers, cabinet-style saws, bench-top and combination sanders, miter saws, floor sweeps, and stand-mounted dust collection nozzles.

  • Motor: 1 HP, 110V/220V, Single-phase
  • Amps: 9 @ 110V, 4.5 @ 220V
  • Air suction capacity: 800 CFM
  • Static pressure: 5.67"
  • Number of 4" intake holes: 1
  • Impeller: 9" balanced steel, radial fin
  • Bag capacity: 2.1 cubic feet
  • Portable base size: 15-3/4" x 39-3/4"
  • Bag size (dia. x depth): 14-3/4" x 24-3/8" (2)
  • Powder coated paint
  • Height with bags inflated: 54-1/2"
  • Approximate shipping weight: 59 lbs.



No. Description
Price
Quantity
330
Shop Fox 1- Hp Dust Collector
$239.99
Phone Order Only
(888) 512-9069
Requires extra shipping fees.

product divider

Shop Fox 2 Hp Dust Collector

Shop Fox Dust Collector



This SHOP FOX® Dust Collector features a 2 HP motor and an extra heavy-duty 12" steel impeller that moves 1,550 cubic feet of air every minute. When it comes to performance and value, this one is hard to beat!

  • Motor size: 2 HP, 220V, single-phase, 3,450 RPM · Motor amp draw: 220V - 12A
  • · 6" Inlet with a removable "Y" fitting with two 4" openings
  • · Portable base size: 21-1/2" x 33-1/2"
  • · Bag volume: 5.4 cubic feet · Height (with bags inflated): 78"
  • · Bag size (dia. x depth): 19" x 33" (2)
  • · Powder-coated paint
  • · Impeller: Balanced steel, radial fin 12"
  • · Air suction capacity: Approx. 1,550 CFM
  • · Static pressure: 12.3"
  • · Standard bag filtration: 30 Micron
  • · Approx. shipping weight: 130 lbs.
No. Description
Price
Quantity
332
Shop Fox 2 Hp Dust Collector
$349.99
Phone Order Only
(888) 512-9069
Requires extra shipping fees.
336
D3116 2.5 Micron Replacement Dust Collector Bag
universal oversize bag for upper and lower bag replacement.
$59.99

product divider

Mini Cyclone Dust Kit

Mini Cyclone Dust Kit

Is your shop vac just not hacking it? Tired of all the work it takes to empty your shop vac and clean the filter?

The Mini Cyclone Dust Kit solves these problems. The Mini Cyclone traps most of the sanding dust, with only a fraction making it to the vacuum. That means you easily dump the Mini Cyclone not the shop vac. Extends the life of shop vac and your filters. Since the Mini Cyclone is on rollers it is easy to roll around the shop from machine to machine. In and out dust ports for 2-1/2" I.D. dust collection hose.



No. Description
Price
Quantity
539
Mini Cyclone Dust Kit
$44.99

product divider

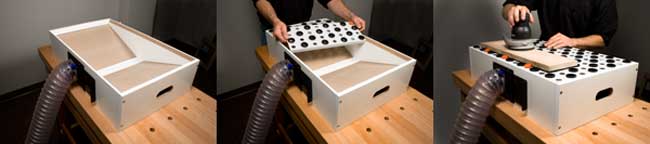

Down Draft Box Table

Dust Collection Downdraft Sanding Box
Dust Collection Hose Not Included


This Pre-Made Down Draft Box comes with everything you need to draw harmful dust particles away from the user without obstructing the user's movement or productivity.

  • 7" deep x 17-1/4" wide x 28" long down draft box (some assembly required) with baffles to direct saw dust towards dust port.
  • 4" dust collection port / blast gate connects to your dust collection system for efficient dust/chip disposal (hose not included)
  • Includes 64 non-slip rubber grommets to help stabilize your work piece while sanding or routing.
  • Orange stops are also included to prevent stock movement while sanding and are able to be placed in any of the open holes on the plate(s).
No. Description
Price
Quantity

227

Down Draft Box Table

$89.99

Temporarily Sold Out

product divider

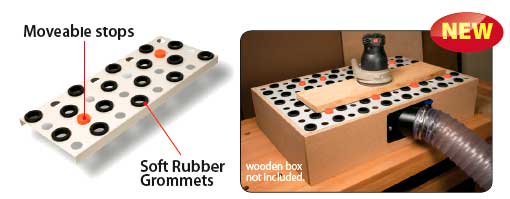

Downdraft Panels 2 Pack

Build your own custom downdraft table and finish it off with these steel down draft panels. Each plate measures 6-3/4" x 16-1/2" and has soft, non-slip rubber grommets to prevent marking the stock. Orange stops are also included to prevent stock movement while sanding and are able to be placed in any of the open holes on the plate(s). The set includes 2 down draft panels.
No. Description
Price
Quantity

3592

Downdraft Panel Set (Set of 2)

$24.99

Temporarily Sold Out
