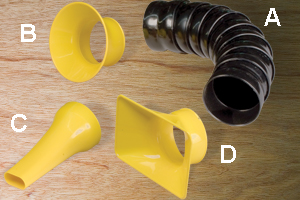

Complete Drill Press Dust Collector Kit

The kit comes with 12” of Rigid Flex-Lock Hose, 1 each Drill Press Column Mounting Bracket , 1 each . 2 1/2” hose adaptor, and 1 each. tapered nozzle.

Extra Hose and Nozzles

The adaptor snaps right on to the Rigid Flex-Lock links witch then allows you to attach a 2 1/2" hose to it.

This mounting bracket can be used to mount Rigid Flex - Lock Hose to your drill press. The UHMW Mounting Bracket bolts to the drill press motor mounting bracket. Some 8" or 10" and some 12" benchtop models needs adapter plate #343 below.

The drill press dust collector adaptor plate is used for drill presses that are to small to allow the dust collection system to attach properly. It fits directly on to the motor mount to project the setup outward from the machine.

4” to 2½” allows you to reduce from a 4” hose down to a 2½” hose. Hose clamps are required for this type of connection or the small end accepts a standard 2¼” Shop- Vac® hose end. Only one hose clamp is required on the opposite 4” end for this type of connection.

Splice fittings are used simply to connect two sections of dust collection hose together. You can use them on long runs of hose line or short runs of hose line. Hose clamps are required for proper connection . The 2-1/2” fitting will accept a 2-1/4” Shop-Vac® hose. This will allow you to join two Shop-Vac® hoses end to end with no hose clamps.
